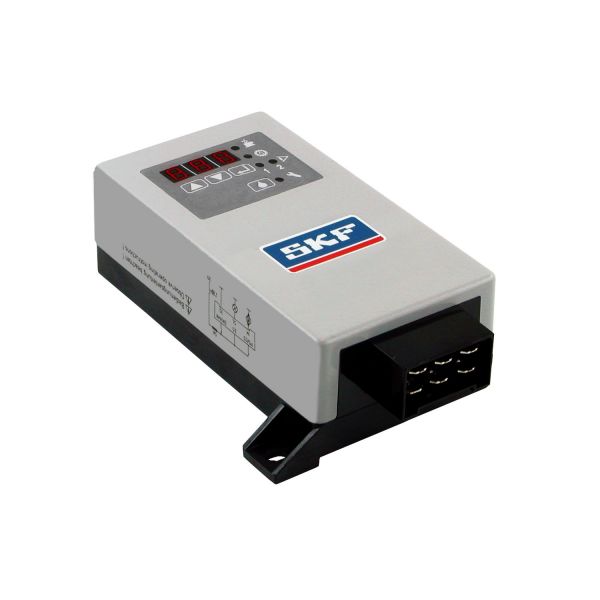

Control Unit IG502-2-E for piston pumps, external

• Electrical control unit IG502-2-E for piston pumps, external
• Control voltage: 12 V DC or 24 V DC
• Contact load, connection M: max. 10A
• SL-outlet: 4 W
• Protection class: IP 40, DIN 40050
• Temperature range: -25 to +75°C
• Safety: max. 5 A
• Programmable pause times: 0,1 to 99,9 h
• Programmable pump run time: 0,1 to 99,9 min
• Programmable impulses: 1 to 999
• Run time / error time memory: 0 to 99999,9 h
• Certification: CE

The suitable cable set can be found with item-no. 997-000-185.

IG502-2-E Universal control and monitoring device for vehicles for use in single-line and progressive lubrication systems

The IG 502-2-E is a universal control and monitoring device for vehicles and is suitable for centralized lubrication in progressive and single-line systems. The compact device is equipped with a display panel for parameter settings and function monitoring. Different operating modes, such as timer, counter and monitoring functions for pressure and cycle switches, are programmable. The device has its own data memory to be independent of supply voltage. To avoid environmental influences, it is advisable to install the device inside a cabinet.

Features and Benefits

• Universal control and monitoring device
• Compact design
• Easy to operate
• Different operating modes, such as timer, counter and monitoring functions
• Red LED failure indicator also shows failure cause
• Integrated counters for permanent operation, failed hours and working-hour meter show system life cycle
• PIN lockout feature to prevent unauthorized programming changes

Applications

• Commercial vehicles
• Construction machines
• Farm machinery
