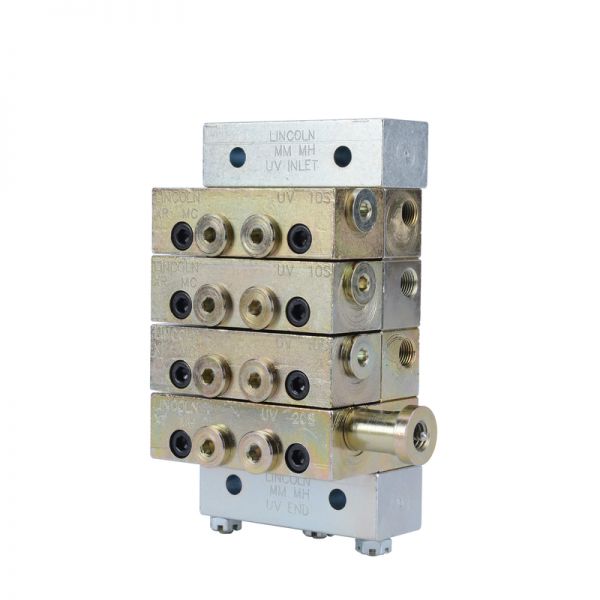

Dosing Metering Device UV

• Mode of operation: Lubricant distributor
• Outlets: 6 - 18
• Lubricant: Oil or grease of NLGI classes 0 to 2
• Metered quantity per cycle and outlet: 0.082 - 1.311 cm³
• Operating pressure: max. 240 bar
• Housing material: galvanized steel
• Material seals: FKM
• Inlet connections: 1/4 NPSF (F)
• Outlet connections: 1/8 NPSF (F)
• Dimensions: min. 11 x 75 x 57 mm; max. 232 x 76 x 57 mm
• Installation position: any

Lubricant distributor UV in segment design for automatic progressive lubrication systems

Distributors of type UV have a modular design and consist of a base plate and a metering disk section. The base plate comprises an inlet disk and an end disk, as well as three to eight metering disks. The metering disk section comprises three to eight metering disks (depending on the number of outlets required), which are attached to the base plate. There are FKM O-ring seals between all parts.

There must be at least three dosing segments. There are either one or two outlets on each of the dosing segments. Whenever a single dosing disk or a crossporting connector is used, the unused outlet must be closed.

Features and advantages

• Alternative outlets for overpressure indicators
• Optional: Dosing disks with optical cycle indicator
• Optional: Bypass metering element for adding or removing lubrication points

Applications

• Industrial systems
• Forming machines
• Material transport machines
