MKL5 Oil/Air Single-line Pump

Artikel-Nr.: MKL5-12FC01000 428

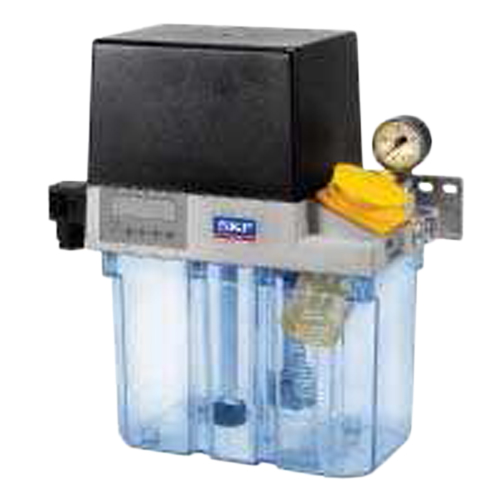

MKL Einleitungspumpe 3 Liter Kunststoffbehälter

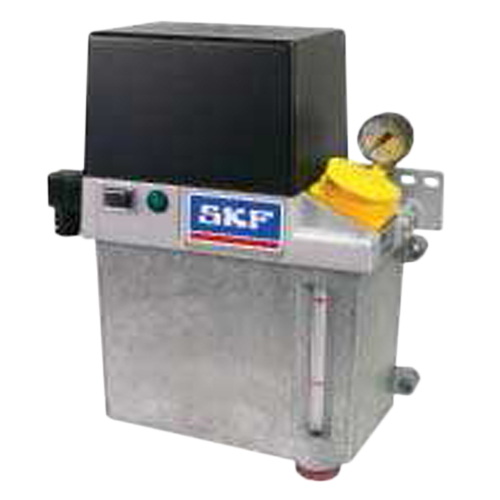

MKL Einleitungspumpe 3 Liter Metallbehälter

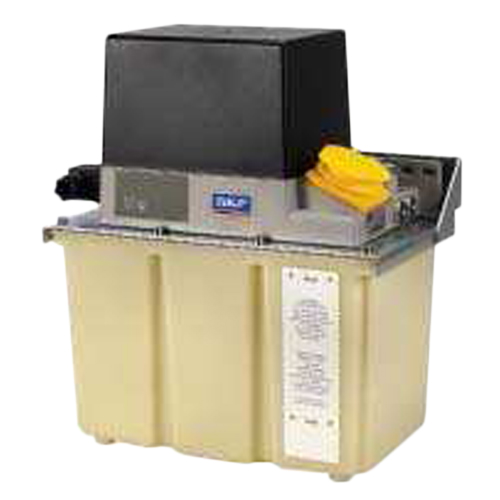

MKL Einleitungspumpe 6 Liter Kunststoffbehälter

Beispielhafte Darstellung, Produkt kann abweichen.

RRP **

1.761,58 EUR / pc.

net plus Shipping Costs plus VAT

** Show your prices and shipping times after Registration oder Login
  • MKL5-12FC01000 428
  • 1
  • 1
  • 500
Gear pump unit series MKL5 for oil + air Flow rate: 0,5 l/min Operating pressure: max. 30...more
MKL5 Oil/Air Single-line Pump
  • Gear pump unit series MKL5 for oil + air
  • Flow rate: 0,5 l/min
  • Operating pressure: max. 30 bar
  • Operating temperature: +10 to +40 °C
  • Protection class acc. to DIN EN 60529 (VDE 0470-1): IP 54
  • Lubricants: Mineral oil or synthetic oil
  • Operating viscosity: 20 - 1500 mm²/s
  • Reservoir: 3 liter plastic, 3 liter metal, 6 liter plastic
Available downloads:
Electrically operated gear pump unit series MKx (MKF, MKL, MKU) for use in single-line or oil...

Electrically operated gear pump unit series MKx (MKF, MKL, MKU) for use in single-line or oil and air lubrication systems

MKx gear pump units include a pressure-regulating valve and pressure-relief valve. Electrical pressure monitoring is performed by an integrated pressure switch, and fill-level monitoring also is possible. These units are controlled externally via the machine control system or an integrated control unit. Also, MKx units can be supplied with a pushbutton to activate interim lubrication at any time. Main functions are integrated into the lid, and a plastic cap protects the electrical components from contaminants such as dirt and dust.

MKU units supply oil with a viscosity of 20 to 1 500 mm²/s in single-line lubrication systems. These units can be supplied with an optional pressure gauge for visual monitoring of pressure changes in the main line.

MKF units are used in single-line systems to supply fluid greases NLGI 000 and 00.

MKL units supply an oil and air mixture in oil and air lubrication systems.

Features and Benefits

  • Integrated pressure-limitation and pressure-relief valve
  • Optional: electrical pressure switch, pressure gauge, float switch
  • External control via SPS or by means of internal control unit possible
  • All important functions integrated into the lid
  • Modular construction

Applications

  • Material handling
  • Automotives
  • Machine tool
  • Printing and finishing
  • Industrial assembly and automation
  • Textiles
