 - Order number: 406-145K
 - Graduation: 1
 - Minimum Quantity: 1
 - Maximum Quantity: 500

 acc. to DIN 3862 Material: galvanised steel for pressure up to max. 45 bar 45° angle or...more

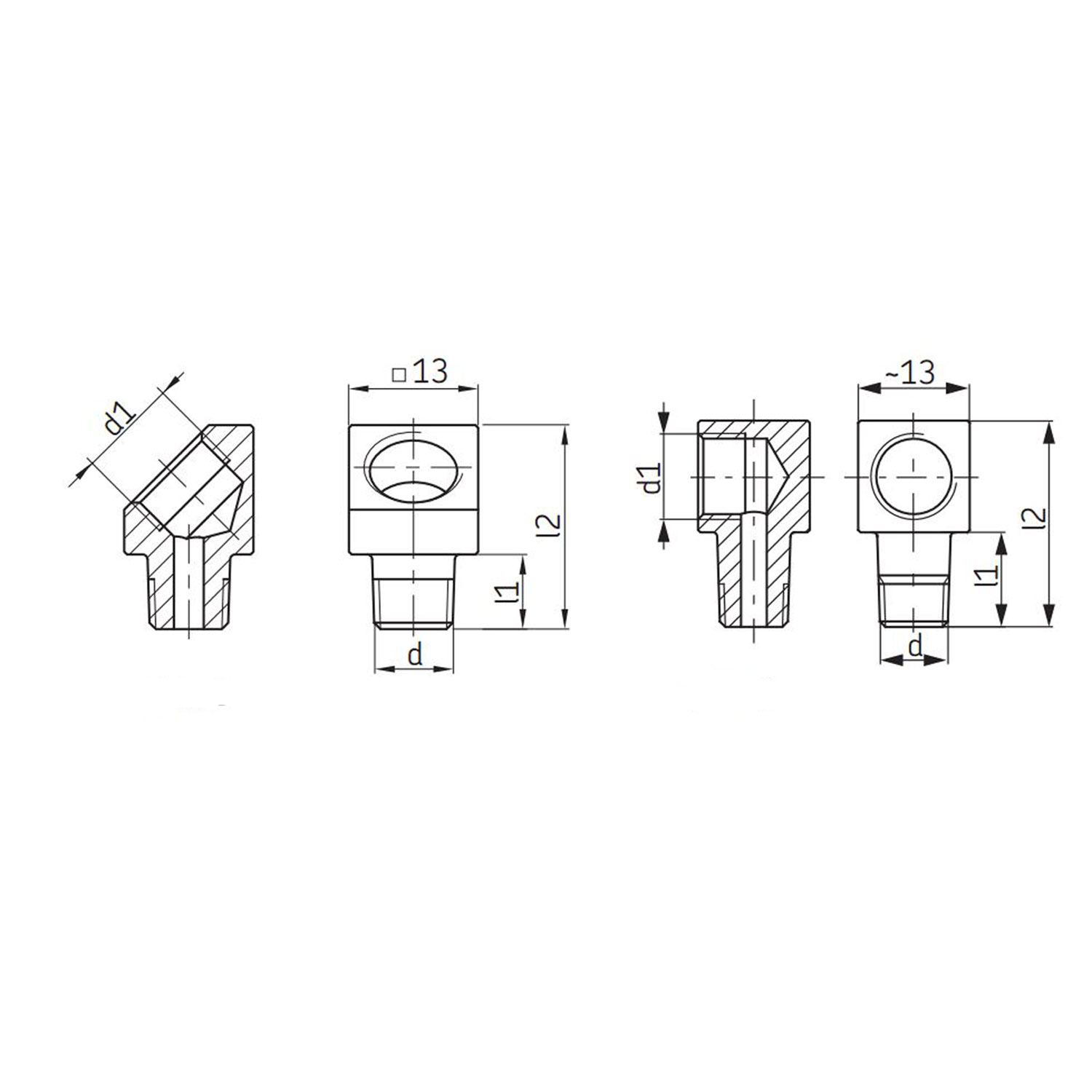

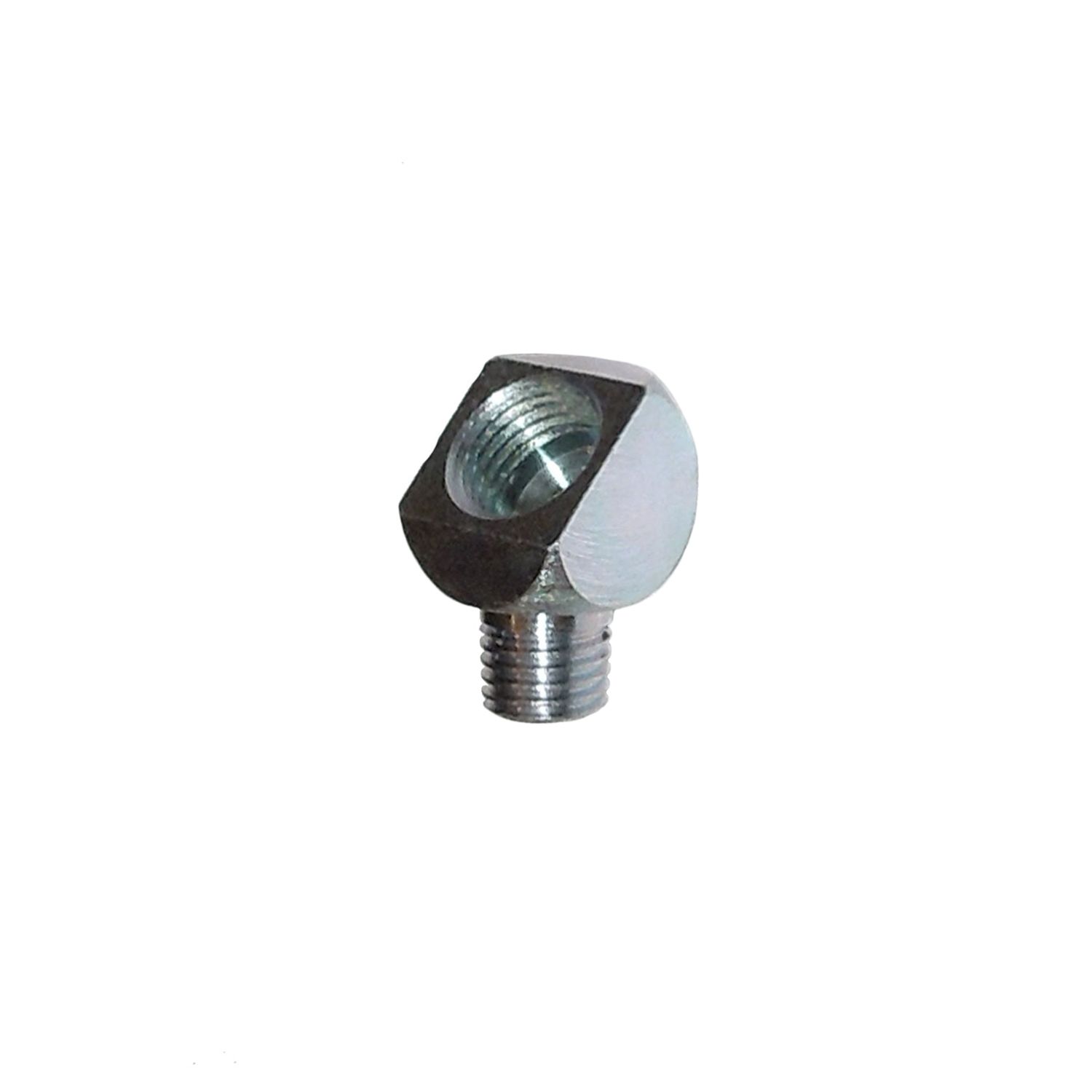

 Elbow Fittings 45° and 90 °
 - acc. to DIN 3862
 - Material: galvanised steel
 - for pressure up to max. 45 bar
 - 45° angle or 90° angle

| Item no. | d | d1 | l1 | l2 |
|---|---|---|---|---|
| 406-145K | M8x1 tap | M10x1 | 7,5 | 21 |
| 406-045K | M10x1 tap | M10x1 | 7,5 | 21 |
| 406-089K | M8x1 tap | M10x1 | 11 | 24 |
| 406-090K | M10x1 tap | M10x1 | 11 | 24 |
| 406-091K | R 1/8 tap | G 1/8 | 11 | 24 |
| 406-092K | M10x1 tap | M10x1 | 17 | 30 |
| 406-093K | R 1/8 tap | M10x1 | 11 | 24 |
