Reduction Fitting, cylindrical

Order number: 843-130-021
Graduation: 1
Minimum Quantity: 1
Maximum Quantity: 500

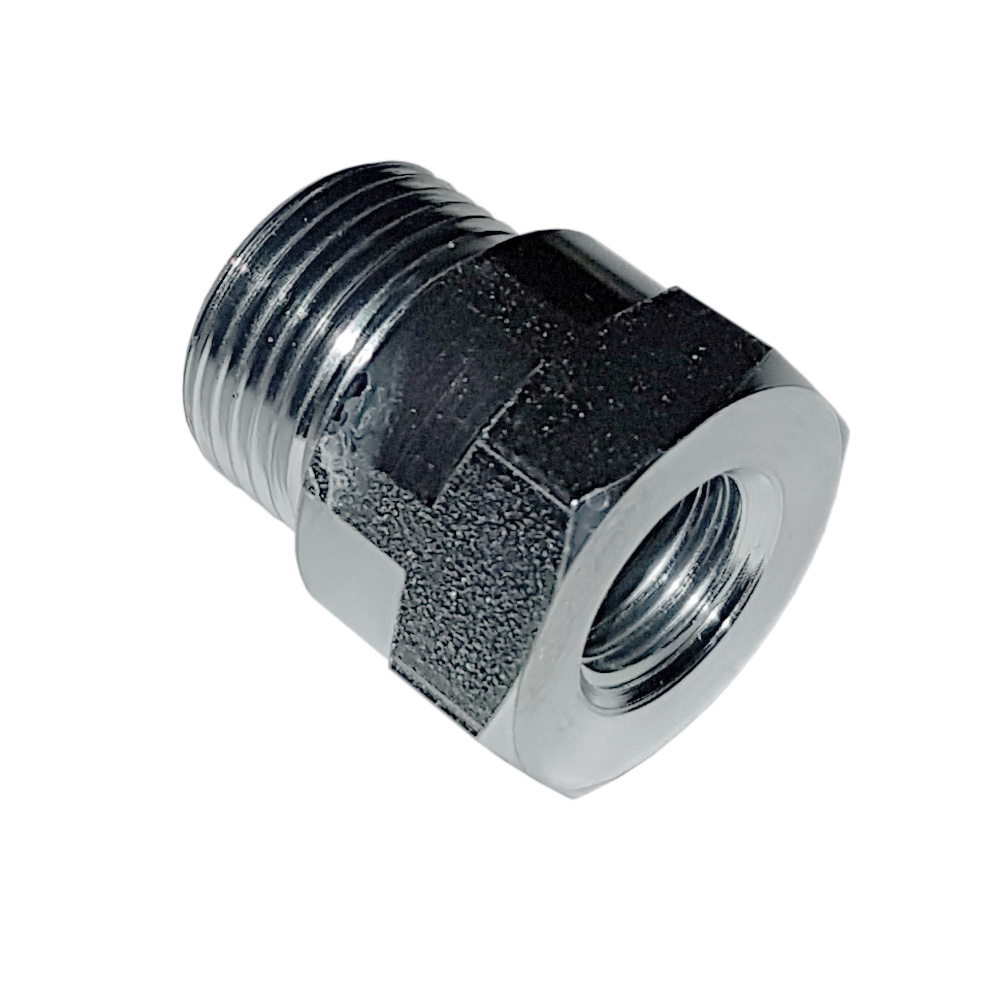

Beispielhafte Darstellung, Produkt kann abweichen.

Price only for registered members

Thread:

acc. to DIN 3862 Pressure: max. 45 bar Sealing via flat washer acc. to DIN 7603 more

Reduction Fitting, cylindrical

Available downloads:

Available thread, sizes and material acc. to the following chart: Item no. d1 d2...

Available thread, sizes and material acc. to the following chart:

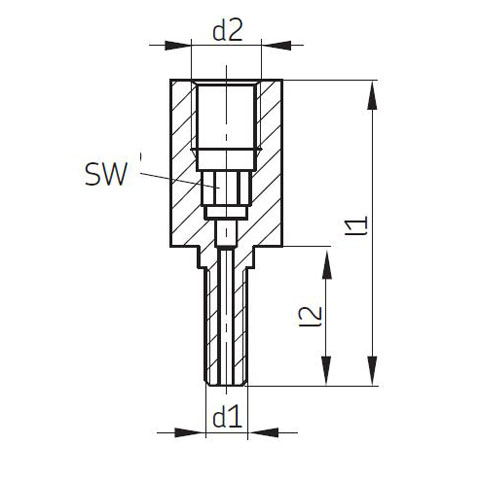

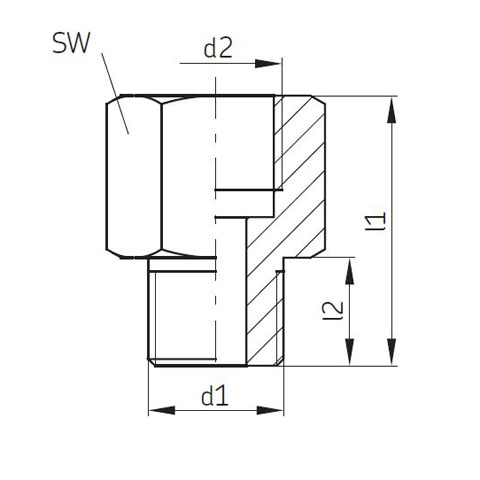

Item no.	d1	d2	l1	l2	SW	Material
843-130-021 ¹)	M3	M5	22	10	3	steel, galvanised surface
843-130-022 ¹)	M4	M6	22	10	3
843-130-023 ¹)	M5	M7	22	10	3
406-024	M10x1	G 1/8	20	8	14	brass, galvanised surface
401-016-312	M10x1	G 1/4	26,5	7,5	17	brass
406-044-S1	M10x1 keg	G 1/4	22,5	8	17	steel, galvanised surface
P-78.01	M12x1	G 1/4	27	8,5	19
401-013-161	G 1/4 A	G 1/2	40	12	27
401-019-352	M14x1,5	G 1/8	20	9	17	brass
401-016-371	M16x1,5	G 1/4	30	12	19	steel, galvanised surface
243-001.10	M16x1,5	G 1/2	31	9	27	steel, galvanised surface
267-001.47	G 3/8 A	G 1/4	31	10	22	brass
267-001.60	G 3/8 A	G 1/2	34	10	27	brass
267-001.36	M18x1,5	G 3/8	32	10	22	steel, galvanised surface
243-001.20	M18x1,5	G 1/2	32	10	27
44-1755-2029	M20x1,5	G 1/4	28	12	24
401-019-132	G 1/2 A	G 1/8	24	12	27	brass
DZ333	G 1/2 A	G 1/4	24	12	27
401-013-131	G 1/2 A	G 1/2	40,5	12	27
DZ334	G 1/2 A	G 3/8	31	12	27
267-001.03	G 1/2 A	G 3/4	40	12	36
401-011-132	G 1/2 A	G 1	49	14	41	steel, galvanised surface
433-890-131	G 1/2 A	G 1/2 A	53	14	55
401-013-171	G 3/4 A	G 1/2	41	16	32
401-013-111	G 1 A	G 1/2	29	18	41
¹) with internal thread
