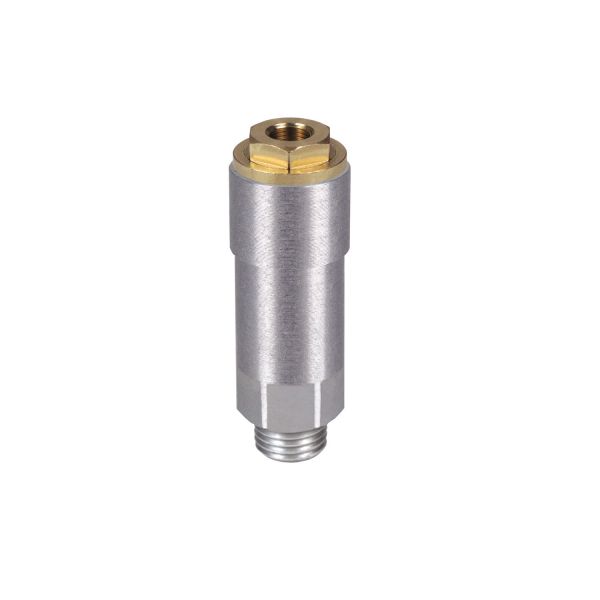

Pre-Lubrication Single-line Metering Devices 391

Artikel-Nr.: 391-000-50000-00
SKF Vorschmierverteiler 391-000-50000-ZZ
SKF Vorschmierverteiler 391-100-50000-ZZ

Beispielhafte Darstellung, Produkt kann abweichen.

RRP **

From 51,25 EUR / pc.

net plus Shipping Costs plus VAT

** Show your prices and shipping times after Registration oder Login

Lubricant:

Material:

Metering:

  • 391-000-50000-00
  • 1
  • 1
  • 500
  Lubricant: Oils, viscosity  20 - 2000 mm²/s or Fluid grease, NLGI...more
Pre-Lubrication Single-line Metering Devices 391



  • Lubricant:
    Oils, viscosity 20 - 2000 mm²/s or
    Fluid grease, NLGI grade. 000 / 00
  • Metering quantity acc. to version: 0,10 - 1,50 cm³
  • Operating temperature: 0 to +80°C
  • Operating pressure: 8 - 45 bar (oil), 26 - 45 bar (fluid grease)
  • Tightening torque for installation: 16 Nm
  • Lubrication connection: Ø 4 mm (solderless tube union)
Basic version:
  • Body material: Aluminium
  • Dosing nipple material: brass (oil), nickel-plated brass (fluid grease)
  • Sealing material: NBR
  • Screw-in sealing: Cu-ring (please order separetly: 504-019)

Dimensions oil

Zeichnung-391-l

Dimensions fluid grease

Zeichnung-391-Fliessfett

Other sealing materials available - please inquire for non-listed versions.

Series 391 pre-lubrication metering devices for use in single-line lubrication systems Series...

Series 391 pre-lubrication metering devices for use in single-line lubrication systems

Series 391 single-port pre-lubrication metering devices were developed for use with single-line lubrication systems for oil and fluid grease. Designed for installation in manifolds, these metering devices provide flexible system design when combined with one- to six-port manifolds. Customized manifolds for series 391 are available in aluminum.

Features and benefits

  • For use with manifolds having one to six ports to match number of lubrication points
  • Provides flexible options for systems with remote single lubrication points or multiple-port metering devices with up to six ports
  • Select optional push-in or screw-in type nipples for feed line connections
  • Choose separately manifold models with different thread sizes for main line connection and materials
  • Current metering nipples are exchangeable to yield different output quantities

Applications

  • Machine tools
  • Printing machines
  • Packaging industry
  • Textile industry
  • Agriculture
Data sheet for MonoFlex pre-lubrication metering devices 391 Click to zoom...

Data sheet for MonoFlex pre-lubrication metering devices 391

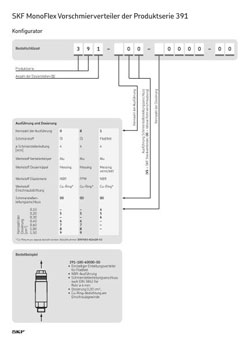

Konfigurator-391

Click to zoom
Dosiernippel-391
