Pre-Lubrication Metering Devices 341

Artikel-Nr.: 341-100-10000
SKF MonoFlex Einleitungsverteiler 341-100-40000-00
Beispielhafte Darstellung, Produkt kann abweichen.

RRP **

From 24,53 EUR / pc.

net plus Shipping Costs plus VAT

** Show your prices and shipping times after Registration oder Login

Version:

Werkstoff Elastomere:

Schmierstellenleitungsanschluss:

Metering:

  • 341-100-10000
  • 1
  • 1
  • 500
Lubricant: oils, viscosity 20 - 2000 mm²/s or fluid grease, NLGI 000 / 00 Metering...more
Pre-Lubrication Metering Devices 341
  • Lubricant:
    oils, viscosity 20 - 2000 mm²/s or
    fluid grease, NLGI 000 / 00
  • Metering quantity oil, selectable: 0,01 - 0,16 cm³
  • Metering quantity fluid grease, selectable:: 0,03 - 0,10 cm³
  • Operating temperature: 0 to +80°C
  • Tightening torque for installation: CU-ring: 2,5 Nm
  • Lubrication connection: Ø 4mm
  • Body material: galvanised steel with O-ring
  • Dosing head material: brass (oil), nickel-plated brass (fluid grease)
  • Seal material: NBR

Other variants and materials are available - please contact us for non-listed variants.

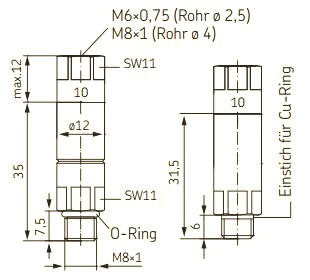

Zeichnung Einleitungsverteiler 341

Series 341 pre-lubrication metering devices Developed for installation in manifolds, series...

Series 341 pre-lubrication metering devices

Developed for installation in manifolds, series 341 single-port, pre-lubrication metering devices are suitable for use with single-line, centralized lubrication systems for oil and fluid grease. The combination of these metering devices with one- to six-port manifolds provides flexible options for lubrication system design. Manifolds customized for product series 341 are available in aluminum and stainless steel.

Features and Benefits

  • Suitable with manifolds having one to six ports to match number of lubrication points
  • Provides flexible options for systems with remote single lubrication points or multiple-port metering devices with up to six ports
  • Select optional push-in or screw-in type metering nipples for feed line connections via order code
  • Choose separately manifold models with different thread sizes for main line connection and materials
  • Current metering nipples above 0,03 cm3 are exchangeable to yield different output quantities

Applications

  • Machine tools
  • Printing machines
  • Packaging industry
  • Textile industry
Data sheet MonoFlex pre-lubrication metering device series 341 Click to zoom...

Data sheet MonoFlex pre-lubrication metering device series 341

Varianten Einleitungsverteiler 341

Click to zoom

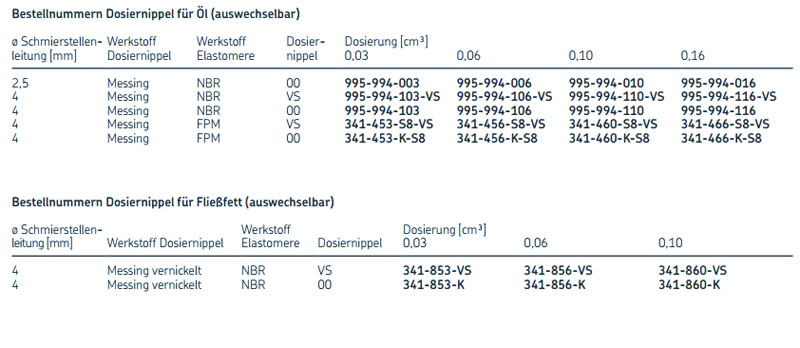

Dosierungen für Einleitungsverteiler 341
