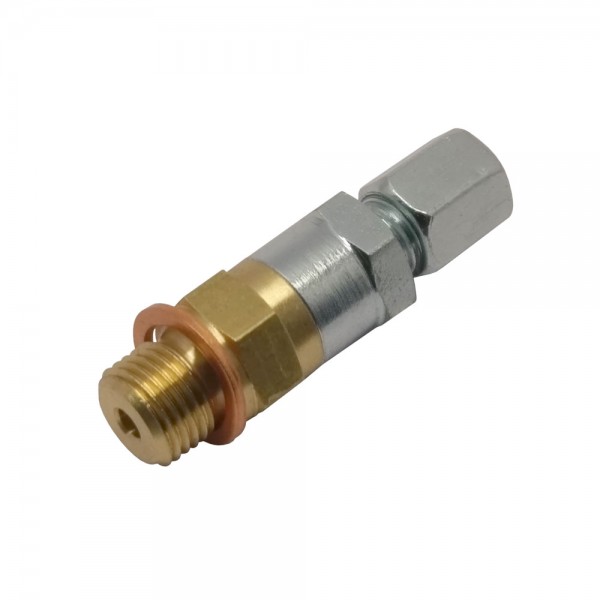

Pre-Lubrication Metering Devices AB

• Lubricants:
  mineral and synthetic oils, viscosity: 20 - 1000 mm²/s
  fluid greases, NLGI.: 000 / 00
• Metering quantity: 0,01 - 0,60 cm³
• Operating pressure: min. 18 bar, max. 50 bar
• Relief pressure: max. 3 bar
• Operating temperature: 0 to +80°C
• Tightening torque for installation: 10 Nm
• Inlet threads: M10x1 AG
• Lubrication connection: Ø 4mm
• Material: galvanised sttel with CU-ring or stainless steel with stainless steel-ring

Series AB pre-lubrication metering devices

Designed for installation in manifolds, series AB single-port, pre-lubrication metering devices were developed for use with single-line lubrication systems for oil and fluid grease. When combined with one- to six-port manifolds, these metering devices provide flexibility in lubrication system design. The metering device body is available in steel and stainless steel versions with copper or stainless steel sealing rings.

Features and Benefits

• For use with manifolds having one to six ports to match number of lubrication points
• Provides flexible options for systems with remote single lubrication points or multiple-port metering devices with up to six ports
• Virtually maintenance-free
• Select screw-in type metering device for feed line connection via order code
• Choose separately manifold models with different thread sizes for main line connection and materials

Applications

• Machine tools
• Printing machines
• Packaging industry
• Textile industry
• Agriculture
