Beispielhafte Darstellung, Produkt kann abweichen.
RRP **
From 19,95 EUR / pc.
net plus Shipping Costs plus VAT
** Show your prices and shipping times after Registration oder Login
- Order number: LGWM 2/0.4
- Graduation: 12
- Minimum Quantity: 12
- Maximum Quantity: 500
SKF High load, wide temperature grease Designation LGWM 2/(Packsize) DIN 51825 code: ...more

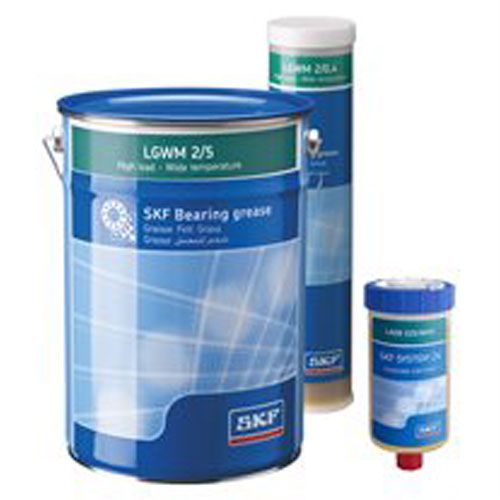

Bearing Grease LGWM2
- SKF High load, wide temperature grease
- Designation LGWM 2/(Packsize)
- DIN 51825 code: KP2G-40
- NLGI consistency class: 1–2
- Thickener: Calcium sulphonate complex
- Colour: Yellow
- Base oil type: Synthetic (PAO)/ Mineral
- Operating temperature range: –40 to +110 °C (–40 to +230 °F)
- Dropping point DIN ISO 2176: >300 °C (>570 °F)
Base oil viscosity:
- 40 °C, mm²/s: 80
- 100 °C, mm²/s: 8,6
Penetration DIN ISO 2137:
- 60 strokes, 10-1 mm 280–310
- 100 000 strokes, 10-1 mm: +30 max
Mechanical stability:
- Roll stability, 50h at 80 °C, 10-1 mm: +50 max.
Corrosion protection:
- Standard ISO 11007: 0–0
- Water washout test: 0-0
- Salt water test (100% seawater): 0–0*
Water resistance:
- DIN 51 807/1, 3 hrs at 90 °C: 1 max
Oil separation:
- DIN 51 817, 7 days at 40 °C, static, %: 3 max.
Lubrication ability:
- R2F, running test B at 120 °C: Pass at 140 °C (285 °F)
- R2F, Cold chamber test (+20 °C to –30 °C): Pass
Copper corrosion:
- DIN 51 811: 2 max. at 100 °C (210 °F)
Rolling bearing grease life:
- R0F test L50 life at 10 000 r/min., hrs: 1 824* at 110 °C
EP performance:
- Wear scar DIN 51350/5, 1 400 N, mm: 1,5 max.*
- 4–ball test, welding load DIN 51350/4, N: 4 000 min.*
Fretting corrosion:
- ASTM D4170 FAFNIR test at +25 °C, mg: 5,2*
- ASTM D4170 FAFNIR test at –20 °C, mg: 1,1*
* Typical value
Available downloads:
High load, wide temperature grease
SKF LGWM 2 is a synthetic-mineral oil based grease using the latest complex calcium sulphonate thickener technology. It is suitable for applications subjected to high loads, wet environments and fluctuating temperatures.
Features & benefits
- Excellent corrosion protection
- Excellent mechanical stability
- Excellent high load lubricating capacity
- Good false brinelling protection
- Good pumpability down to low temperatures
Typical applications
- Wind turbine mains shafts
- Heavy duty off road applications
- Snow exposed applications
- Marine and offshore applications
- Spherical roller thrust bearing applications
