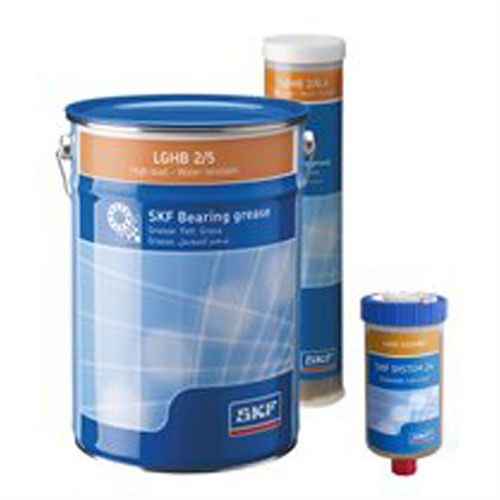

Bearing Grease LGHB2

• SKF High load, high temperature, high viscosity grease
• Designation LGHB 2/(Packsize)
• DIN 51825 code: KP2N-20
• NLGI consistency class: 2
• Thickener: Calcium sulphonate complex
• Colour: Brown
• Base oil type: Mineral
• Operating temperature range: –20 to +150 °C (–5 to +300 °F)
• Dropping point DIN ISO 2176: >220 °C (>430 °F)

Base oil viscosity:

• 40 °C, mm²/s: 400–450
• 100 °C, mm²/s: 26,5

Penetration DIN ISO 2137:

• 60 strokes, 10^-1 mm 265–295
• 100 000 strokes, 10^-1 mm: –20 to +50 (325 max.)

Mechanical stability:

• Roll stability, 72 hrs at 100 °C, 10^-1 mm: –20 to +50 change
• V2F test: M

Corrosion protection:

• Standard ISO 11007: 0–0
• Water washout test: 0-0
• Salt water test (100% seawater): 0–0*

Water resistance:

• DIN 51 807/1, 3 hrs at 90 °C: 1 max

Oil separation:

• DIN 51 817, 7 days at 40 °C, static, %: 1–3 at 60 °C (140 °F)

Lubrication ability:

• R2F, running test B at 120 °C: Pass at 140 °C (285 °F)

Copper corrosion:

• DIN 51 811: 2 max. 150 °C (300 °F)

Rolling bearing grease life:

• R0F test L50 life at 10 000 r/min., hrs: >1 000 at 130 °C (265 °F)

EP performance:

• Wear scar DIN 51350/5, 1 400 N, mm: 0,86*
• 4–ball test, welding load DIN 51350/4, N: 4 000 min.

Fretting corrosion:

• ASTM D4170 (mg): 0*

* Typical value

High load, high temperature, high viscosity grease

SKF LGHB 2 is a high viscosity, mineral oil based grease, using the latest complex calcium-sulphonate soap technology. Formulated to withstand high temperatures and extreme loads, it is suitable for a wide range of applications, especially in the cement, mining and metals segments. This grease contains no additives and the extreme pressure properties arise from the soap structure.
