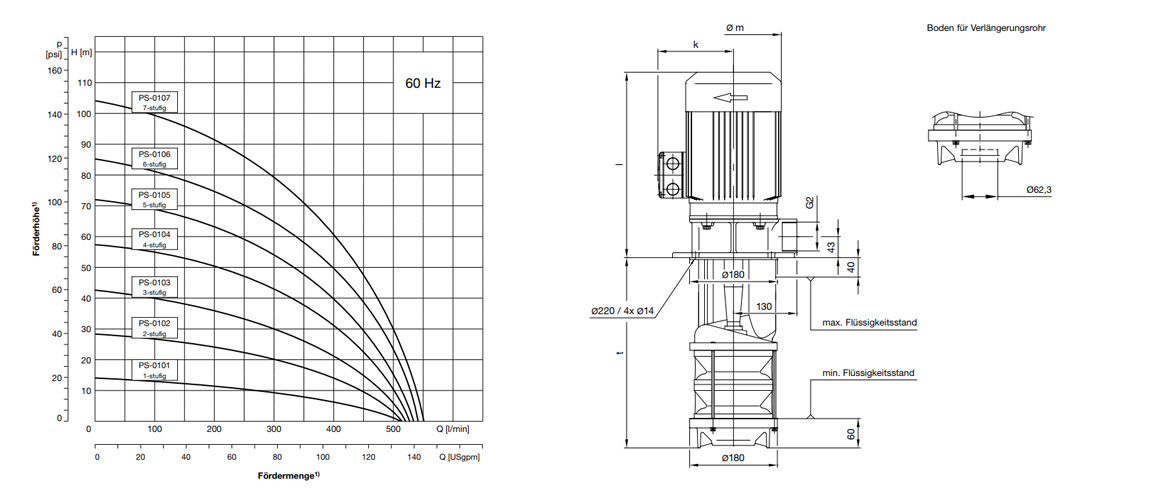

Immersion Pump PSL 01, 60Hz

Technical Data

• Delivery rate: 550 l/min
• Delivery head: max. 105 m
• Immersion depth: max. 670 mm
• Kinematic viscosity: max. 30 mm²/s
• Delivery temperature: 0°C to +80°C
• Grain size: max. Ø 4 mm
• Contamination: max. 8,2 kg/m³
• Direction of rotation ((as viewed looking down on the motor's ventilation side): clockwise
• Fluids delivered: Emulsions, cooling and cutting oils, Water with rustproofing additives, heat carrier oil



Mechanical design

• Flange: EN-GJL-200
• Shaft: 1.0762
• Impeller: EN-GJL-200
• Intermediate chamber: EN-GJL-200
• Bearings: Deep groove ball bearing with covering disk
• Bushing: Sintered iron
• Pumps bottom: EN-GJL-200
• Mechanical seal: NBR

Features:

• Vertical multistage centrifugal pump
• For delivery of clean, polluted and viscous types of fluids
• Installation direcly into the reservoir
• Pressure port is located above the reservoir plate and designed with internal thread G2
• Slurp version PSL for air-polluted liquids

 Variations:

• Propeller for slurp version: Steel
• Extension tube: 1.0308
